Industrial Recycling Machine
Products

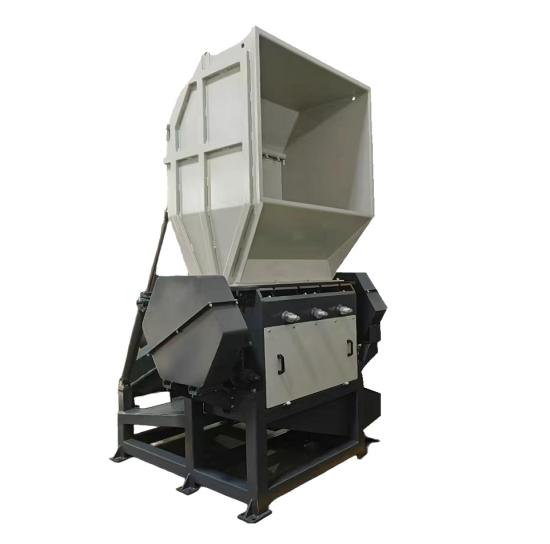

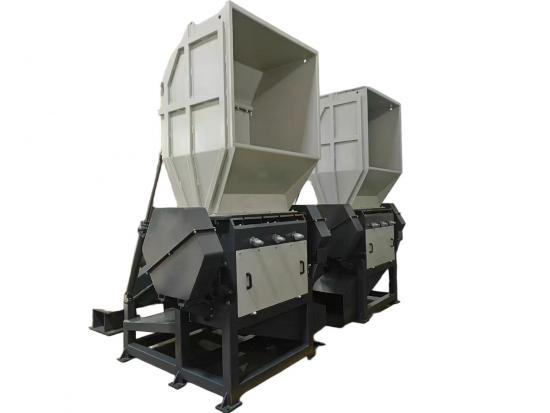

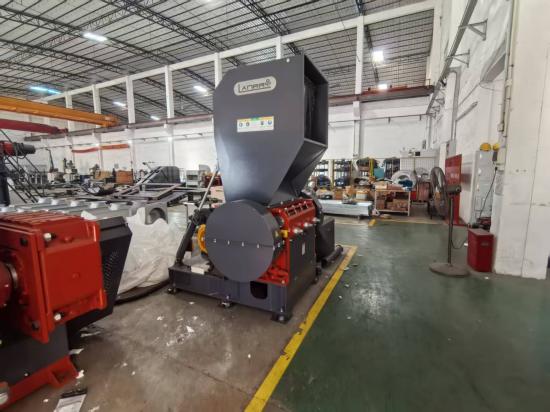

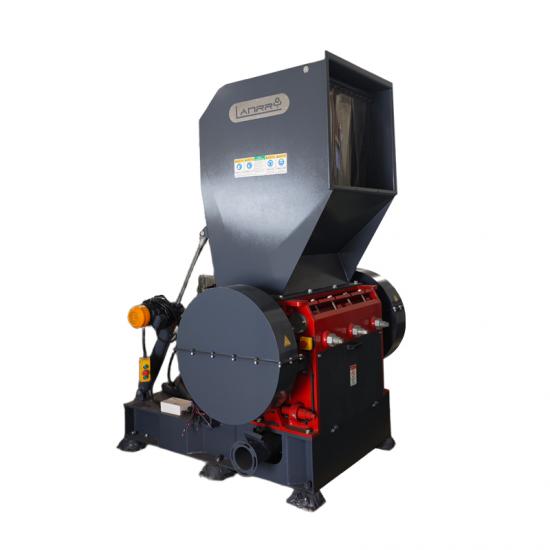

Granulator Machine
Granulator Machine

Plastics/Rubber/Fibers/Copper Cable Various Materials Granulator

Granulators are high-speed cutting machines that are specifically designed for the efficient size reduction of various materials, such as plastics, rubber, fibers, copper cable, and light non-ferrous metals.

Granulators are high-speed cutting machines(Not Specifically Stated)only crush nonferrous metal materials such as PP, PE, PET, PVC, and other waste materials that are less hard, fragile, and have a certain toughness, such as plastic and rubber products. Metallic materials or hard foreign objects are not permitted to enter the crushing chamber during the crushing process.

The size of the screen aperture can determine the material size.


Granulators are simple to operate and maintain, making it an excellent choice for primary shredding in recycling plants.


Features

1-It is made of high-strength carbon steel welding.

2-The box body is designed to be tilted in half, and equipped with a hydraulic automatic opening and closing device.

3-The screen bracket is equipped with a hydraulic automatic opening and closing device, which reduces the maintenance time.

4-Various cutter configurations, can be adjusted according to different material properties.
5-The overall design of the bearing seat is processed and formed, with high strength and is not easy to be damaged.

6-Outing bearing seat is separated from the case, which can prevent dust impurities from entering it.


Application

Plastics

Rubber

Fiber

Copper Cables

Non-ferrous Metals



Specifications

Medium Size Granulator

Model/Item

LG3280 LG4280 LG42100 LG42120

Dimension L/W/H(mm)

1586x1568x1814 1770x1642x2425 1770x1842x2425 1760x2221x2530

Cutting Chamber C/D(mm)

834x360 834x480 1034x480 1234x425
E(mm) 1369 1842 1842 1947
Rotor-knives(PCS) 3*2 3*2 3*2 3*2
Stator-knives(PCS) 2x2 2x2 2x2 2x2

Main Motor Power(KW)

22 37 45 45

Weight(KG)

1730 2800 3230 4040

Heavy Duty Granulator

Model/Item

LG52100 LG52120 LG66120

Dimension L/W/H(mm)

2119x2025x2984 2070x2225x2984 2410x2320x4340

Cutting Chamber C/D(mm)

1034x670 1234x670 1234x800
E(mm)
2236 2236 3214
Rotor-knives(PCS)
5*2 5*2 5*2
Stator-knives(PCS)
2x2/2x3 2x2/2x3 2x2/2x3
Main Motor Power(KW)
55 75 90
Weight(KG)
4200 5300 7650
