Plastic/Industrial/Solid Waste Double Shaft Shredder

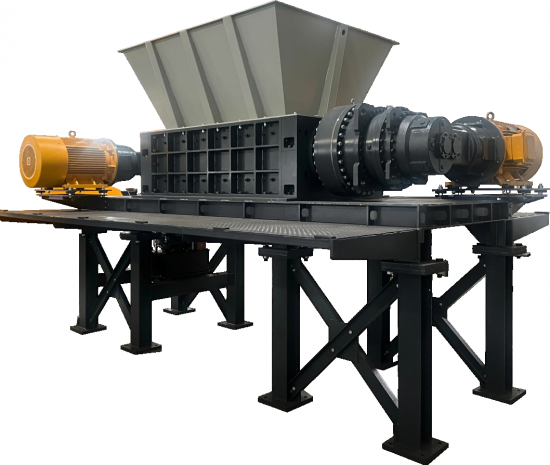

A Double Shaft Shredder is a low speed, high torque, two shaft rotary shear industrial shredder designed to process a wide range of hard materials efficiently.The operation is controlled by PLC automation.

Inquiry now

Product Detail

A Double Shaft Shredder is mainly composed of a moving knife roller (spindle + blade), stator-knives, a carrying box, box support, a feeding system, a hydraulic push system, a power system, and an electrical control system. Due to its low speed and high torque, it is available for harder or bulkier materials, such as wood, tire, and waste appliances.

Features
1-The blade is made of the high alloy 42CrMo, which has high strength and toughness and is difficult to break.
2-The blades of the K-rotor and D-rotor are made of D2, and the main body is made of 42CrMo.
3-The main electrical components are manufactured by well-known companies such as Siemens and Schneider.
4-Automatic protection is designed to avoid machine overload and jamming.
5-High torque, Low speed, Low noise, and High efficiency.

Application
Metal materials: Aluminum, Ferrous, Non-ferrous,Steel scrap,Metal drum
Electronics: Waste household appliances,WEEE, Hard disk, Electronic equipment
Plastic: Plastic drums, Plastic lumps, Waste household plastic, Films
RDF(Refuse Derived Fuel): MSW, Solid waste

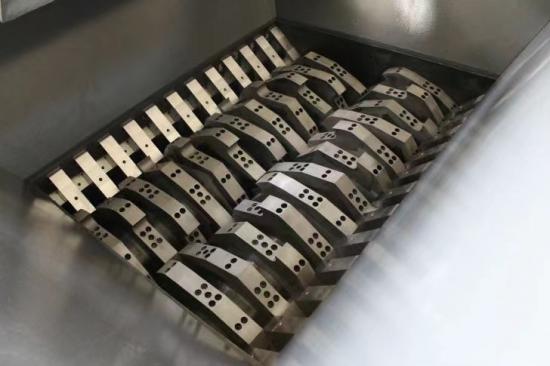

Rotor

We can tailor it to your requirements.

There are 3 types of screens available: Standard-rotor,K-rotor(detachable), and KD-rotor(detachable).

Specifications

Small Double Shaft Shredder

Model/Item	LT3040	LT3060	LT3080
Dimension L/W/H(mm)	1600×1220×1850	2590×1275×1850	2870×1275×1850
Cutting Chamber C/D(mm)	400×470	600×470	800×470
Main Motor Power(KW)	7.5	5.5+5.5	7.5+7.5
Weight(KG)	1500	2450	2670

Medium Double Shaft Shredder

Model/Item	LT4080	LT40100	LT40120	LT40120L
Dimension L/W/H(mm)	2900x1900x2600	3300×1960×2600	3550×2000×2600	3830×3600×4270
Cutting Chamber C/D(mm)	800x750	1000×750	1200x750	1200x750
Main Motor Power(KW)	15+15	18.5+18.5	22+22	30+30+2.2
Weight(KG)	4110	4720	5170	10680

Model/Item	LT50100	LT50130	LT50160
Dimension L/W/H(mm)	4460×3035×3100	4760×3035×3100	5060×3035×3100
Cutting Chamber C/D(mm)	1000x880	1310x880	1610x880
Main Motor Power(KW)	37+37	45+45	55+55
Weight(KG)	9100	11800	14700

Heavy Double Shaft Shredder

Model/Item	LT65130	LT65160	LT65180	LT65200	LT75220
Dimension L/W/H(mm)	4460×3150×3250	4760×3150×3250	5050×3150×3250	5250×3230×6650	5060×3035×3100
Cutting Chamber C/D(mm)	1310x1200	1610x1200	1810x1200	2010x1200	2210x1200
Main Motor Power(KW)	55+55	75+75	90+90	55+55+7.5	55+55+7.5
Weight(KG)	14100	16000	17350	25000	26300

Model/Item	LT75150	LT75200
Dimension L/W/H(mm)	5350X2970X3250	6000X3425X4200
Cutting Chamber C/D(mm)	1510X1440	2010X1400
Main Motor Power(KW)	75+75	110+110
Weight(KG)	26930	28230
